| ブランド名: | PAPA |
| MOQ: | 1セット |
| 価格: | 交渉可能 |
| 支払条件: | T/T または L/C を確認できます |
| 供給能力: | 80セット/月 |

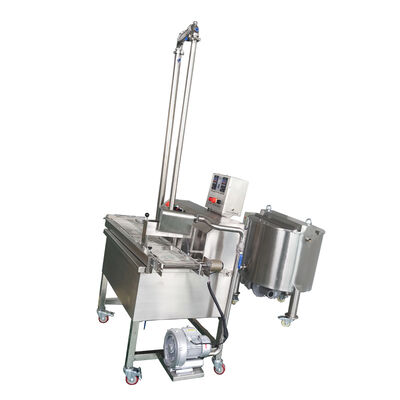

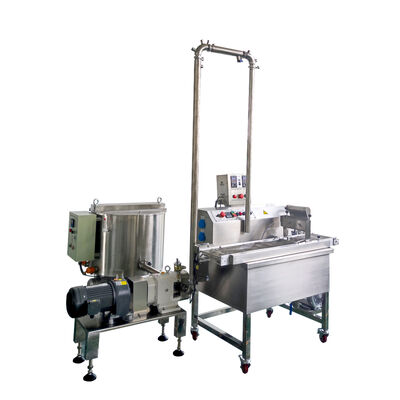

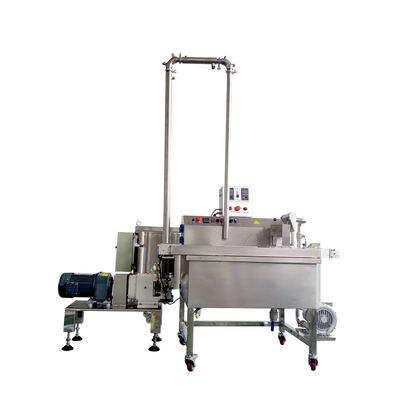

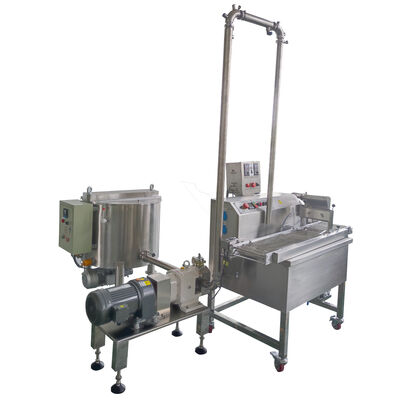

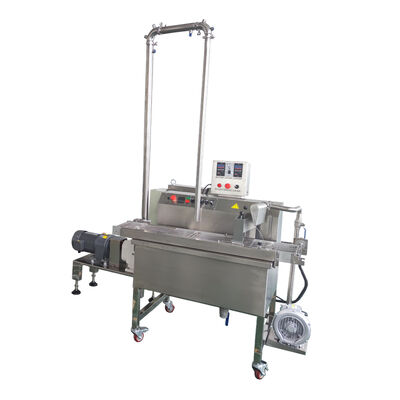

Integrated Chocolate Enrobing Line with Melting Tank & Pump | All-in-One System
Our all-in-one chocolate enrobing system combines an enrober, melting tank, and pump connected by thermostatically controlled pipes. This integrated setup guarantees continuous, temperature-stable chocolate coating for a uniform finish and consistent weight on every product.
Specifications:
PE8/PE15/PE30/PE60 Commercial small chocolate enrober specifications:
| Model | PE8 | PE15 | PE30 | PE60 |
|---|---|---|---|---|
| Capacity | 8KG chocolate/batch | 15KG chocolate/batch | 30KG chocolate/batch | 60KG chocolate/batch |
| Belt speed | 2meter/min | 2meter/min | 2meter/min | 2meter/min |
| Enrober mesh belt width | 180mm | 180mm | 180mm | 300mm |
| Tunnel PU belt width | 200mm | 200mm | 200mm | 400mm |
| Heating method | Electric heating | Electric heating | Electric heating | Electric heating |
| Voltage | 220V, single phase | 220V, single phase | 220V, single phase | 220V, single phase |
| Power | 1.8kw | 2kw | 2.8kw | 3.1kw |
| Dimension | 2000x5701350 | 2000x640x1350 | 3200x710x1350 | 3400x910x1400 |
| Weight | 80KG | 100kg | 190kg | 240kg |
Applications
Machine working videos
https://youtu.be/5eCSuTbIAG8?si=Jom_so6Uf2Hjjvcb
https://youtu.be/MwYcL23Syz8?si=7YgWDXgB4SYmlj1I
https://youtu.be/n-FiGKUetSs?si=aDPJEwEZoXomRI71
https://youtu.be/JtXSfzaYUBc?si=Yt6_sBtdfn9H3Mxp
